IC BRIDGE DRIVER PAR 36HSSOP

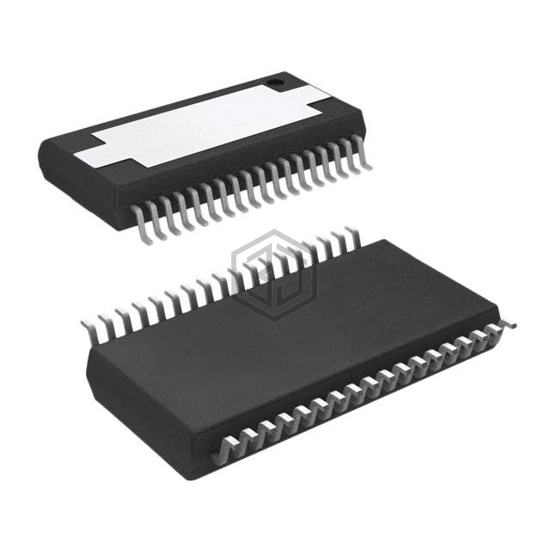

DRV8332DKD is a PMIC - Full, Half-Bridge Drivers manufactured by Texas Instruments. IC BRIDGE DRIVER PAR 36HSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 10.8V ~ 13.2V, package / case 36-BSSOP (0.433", 11.00mm Width) Exposed Pad.
In Stock: 6,643
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge (3) |
| Applications | DC Motors, General Purpose |
| Interface | PWM |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | 80mOhm LS, 80mOhm HS |
| Current - Output / Channel | 8A |
| Current - Peak Output | 13A |
| Voltage - Supply | 10.8V ~ 13.2V |
| Voltage - Load | 0V ~ 52.5V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit, Status Flag |
| Fault Protection | Current Limiting, Over Temperature, Short Circuit, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad |
| Supplier Device Package | 36-HSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DRV8332DKDR | Texas Instruments | IC BRIDGE DRIVER PAR 36HSSOP | 100% | View |
| IRSM836-084MATR | Infineon Technologies | IC HALF-BRIDGE DRVR 3CH 36PQFN | 80% | View |
| IRSM836-084MA | Infineon Technologies | IC HALF-BRIDGE DRVR 3CH 36PQFN | 80% | View |
| DRV8332HDDV | Texas Instruments | IC MOTOR DRIVER 44HTSSOP | 71% | View |
| DRV8312DDW | Texas Instruments | IC BRIDGE DRIVER PAR 44HTSSOP | 55% | View |
| DRV8312DDWR | Texas Instruments | IC BRIDGE DRIVER PAR 44HTSSOP | 55% | View |
Submit your RFQ for DRV8332DKD and get a quote within 24 hours.
