IGBT PT MOS 8 SINGLE 900 V 80 A

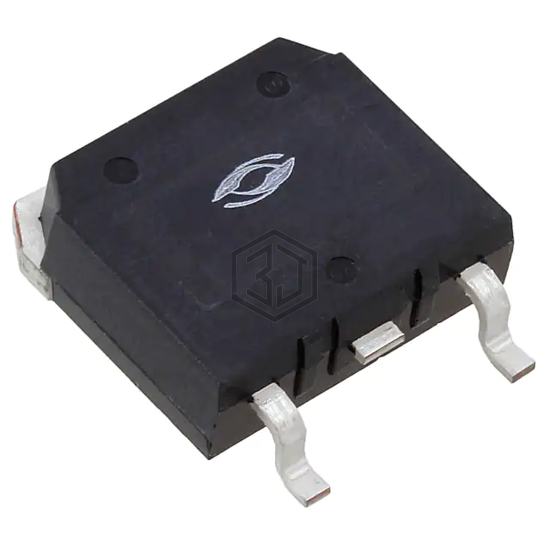

APT80GA90S is a Transistors - IGBTs - Single manufactured by Microchip Technology. IGBT PT MOS 8 SINGLE 900 V 80 A. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA, current - collector (ic) (max) 145 A.
In Stock: 231
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | PT |
| Voltage - Collector Emitter Breakdown (Max) | 900 V |
| Current - Collector (Ic) (Max) | 145 A |
| Current - Collector Pulsed (Icm) | 239 A |
| Vce(on) (Max) @ Vge, Ic | 3.1V @ 15V, 47A |
| Power - Max | 625 W |
| Switching Energy | 1.625mJ (on), 1.389mJ (off) |
| Input Type | Standard |
| Gate Charge | 200 nC |
| Td (on/off) @ 25°C | 18ns/149ns |
| Test Condition | 600V, 47A, 4.7Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
| Supplier Device Package | D3PAK |
