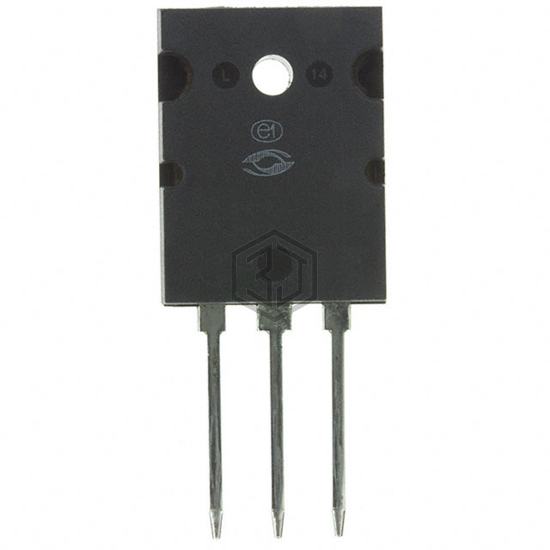

IGBT 600V 143A 625W TO264
APT80GA60LD40 is a Transistors - IGBTs - Single manufactured by Microchip Technology. IGBT 600V 143A 625W TO264. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-264-3, TO-264AA, current - collector (ic) (max) 143 A.
In Stock: 77
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | PT |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 143 A |
| Current - Collector Pulsed (Icm) | 240 A |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 47A |
| Power - Max | 625 W |
| Switching Energy | 840µJ (on), 751µJ (off) |
| Input Type | Standard |
| Gate Charge | 230 nC |
| Td (on/off) @ 25°C | 23ns/158ns |
| Test Condition | 400V, 47A, 4.7Ohm, 15V |
| Reverse Recovery Time (trr) | 22 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-264-3, TO-264AA |
| Supplier Device Package | TO-264 |
Submit your RFQ for APT80GA60LD40 and get a quote within 24 hours.
