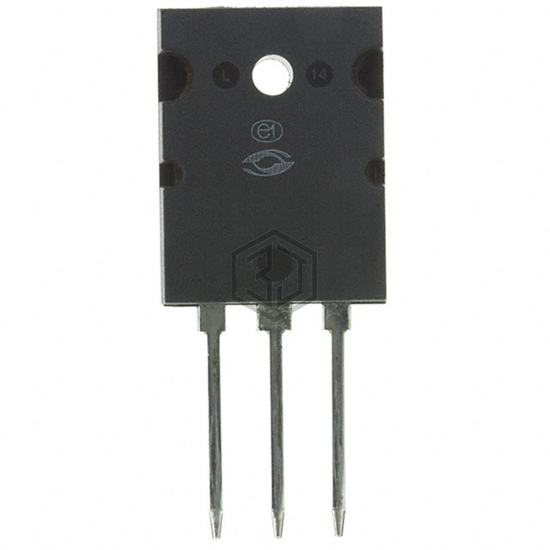

IGBT 600V 155A 536W TO264
APT75GN60LDQ3G is a Transistors - IGBTs - Single manufactured by Microchip Technology. IGBT 600V 155A 536W TO264. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-264-3, TO-264AA, current - collector (ic) (max) 155 A.
In Stock: 2,229
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 155 A |
| Current - Collector Pulsed (Icm) | 225 A |
| Vce(on) (Max) @ Vge, Ic | 1.85V @ 15V, 75A |
| Power - Max | 536 W |
| Switching Energy | 2500µJ (on), 2140µJ (off) |
| Input Type | Standard |
| Gate Charge | 485 nC |
| Td (on/off) @ 25°C | 47ns/385ns |
| Test Condition | 400V, 75A, 1Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-264-3, TO-264AA |
| Supplier Device Package | TO-264 [L] |
Submit your RFQ for APT75GN60LDQ3G and get a quote within 24 hours.
