IGBT 600V 100A 833W TMAX

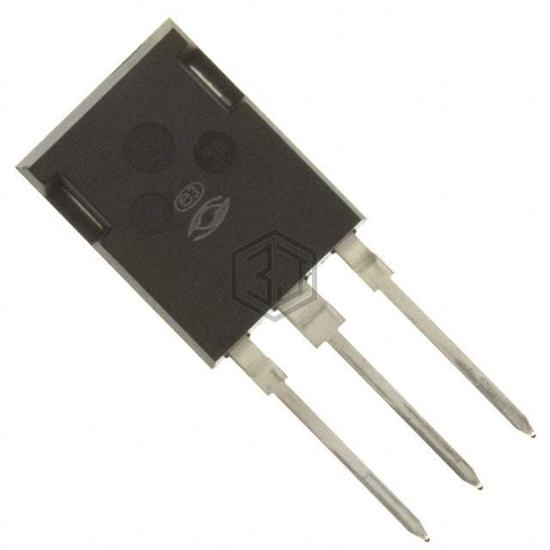

APT65GP60B2G is a Transistors - IGBTs - Single manufactured by Microchip Technology. IGBT 600V 100A 833W TMAX. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3 Variant, current - collector (ic) (max) 100 A.
In Stock: 119
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | PT |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 100 A |
| Current - Collector Pulsed (Icm) | 250 A |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 65A |
| Power - Max | 833 W |
| Switching Energy | 605µJ (on), 896µJ (off) |
| Input Type | Standard |
| Gate Charge | 210 nC |
| Td (on/off) @ 25°C | 30ns/91ns |
| Test Condition | 400V, 65A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 Variant |
| Supplier Device Package | - |
Submit your RFQ for APT65GP60B2G and get a quote within 24 hours.
