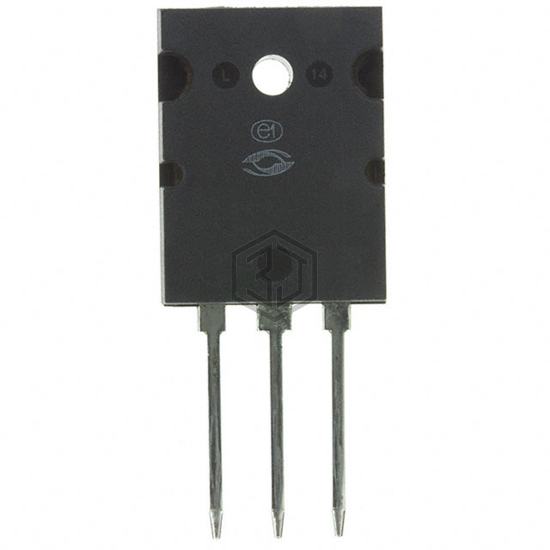

IGBT 1200V 106A 694W TO264
APT50GT120LRDQ2G is a Transistors - IGBTs - Single manufactured by Microchip Technology. IGBT 1200V 106A 694W TO264. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-264-3, TO-264AA, current - collector (ic) (max) 106 A.
In Stock: 4,415
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 106 A |
| Current - Collector Pulsed (Icm) | 150 A |
| Vce(on) (Max) @ Vge, Ic | 3.7V @ 15V, 50A |
| Power - Max | 694 W |
| Switching Energy | 2585µJ (on), 1910µJ (off) |
| Input Type | Standard |
| Gate Charge | 240 nC |
| Td (on/off) @ 25°C | 23ns/215ns |
| Test Condition | 800V, 50A, 1Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-264-3, TO-264AA |
| Supplier Device Package | TO-264 [L] |
Submit your RFQ for APT50GT120LRDQ2G and get a quote within 24 hours.
