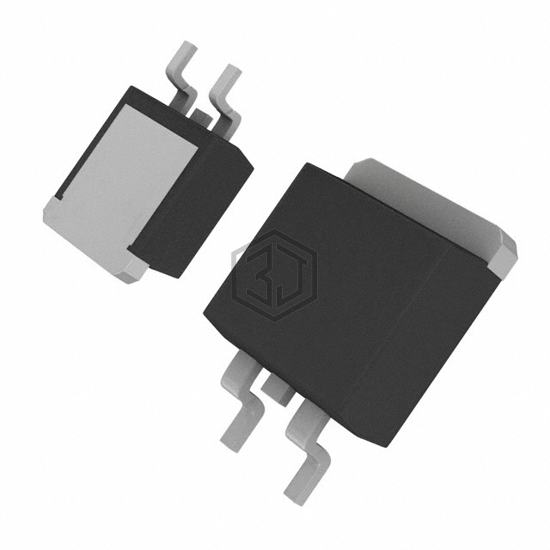

IGBT 1200V 88A 500W D3PAK
APT40GR120S is a Transistors - IGBTs - Single manufactured by Microchip Technology. IGBT 1200V 88A 500W D3PAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 88 A.
In Stock: 8,372
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 88 A |
| Current - Collector Pulsed (Icm) | 160 A |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 40A |
| Power - Max | 500 W |
| Switching Energy | 1.38mJ (on), 906µJ (off) |
| Input Type | Standard |
| Gate Charge | 210 nC |
| Td (on/off) @ 25°C | 22ns/163ns |
| Test Condition | 600V, 40A, 4.3Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D3Pak |
Submit your RFQ for APT40GR120S and get a quote within 24 hours.
