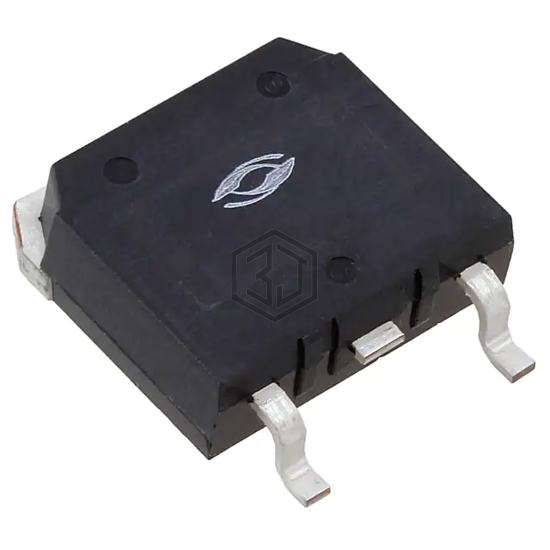

IGBT FIELDSTOP SINGLE 1200V 35A
APT35GN120SG is a Transistors - IGBTs - Single manufactured by Microchip Technology. IGBT FIELDSTOP SINGLE 1200V 35A. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA, current - collector (ic) (max) 94 A.
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | NPT, Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 94 A |
| Current - Collector Pulsed (Icm) | 105 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 35A |
| Power - Max | 379 W |
| Switching Energy | -, 2.315mJ (off) |
| Input Type | Standard |
| Gate Charge | 220 nC |
| Td (on/off) @ 25°C | 24ns, 300ns |
| Test Condition | 800V, 35A, 2.2Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
| Supplier Device Package | D3PAK |
