IGBT 1200V 94A 379W TO264

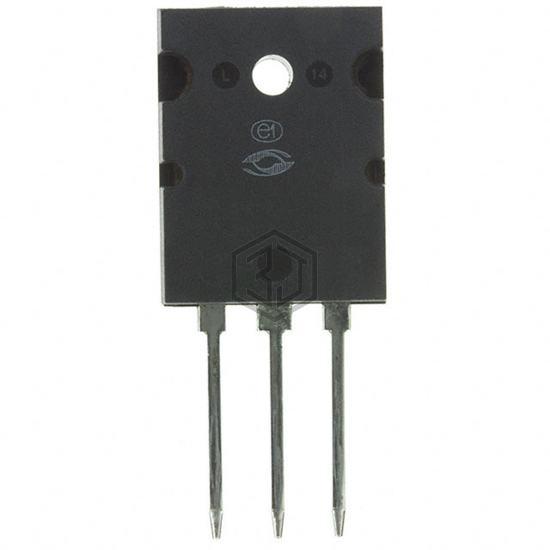

APT35GN120L2DQ2G is a Transistors - IGBTs - Single manufactured by Microchip Technology. IGBT 1200V 94A 379W TO264. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-264-3, TO-264AA, current - collector (ic) (max) 94 A.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | NPT, Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 94 A |
| Current - Collector Pulsed (Icm) | 105 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 35A |
| Power - Max | 379 W |
| Switching Energy | 2.315mJ (off) |
| Input Type | Standard |
| Gate Charge | 220 nC |
| Td (on/off) @ 25°C | 24ns/300ns |
| Test Condition | 800V, 35A, 2.2Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-264-3, TO-264AA |
| Supplier Device Package | - |
Submit your RFQ for APT35GN120L2DQ2G and get a quote within 24 hours.
