IGBT 1200V 75A 521W D3PAK

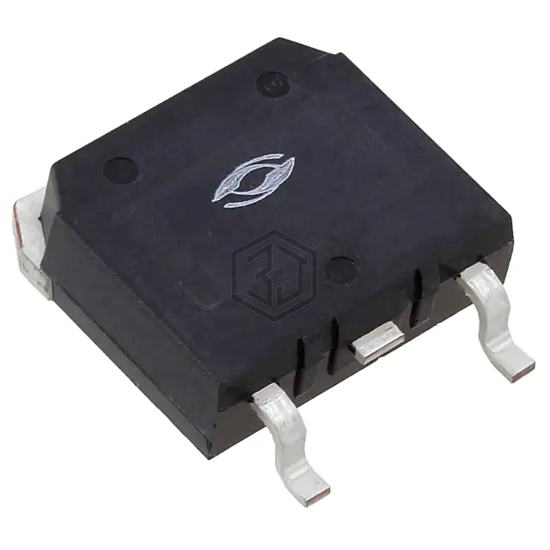

APT25GR120S is a Transistors - IGBTs - Single manufactured by Microchip Technology. IGBT 1200V 75A 521W D3PAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA, current - collector (ic) (max) 75 A.
In Stock: 80
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 75 A |
| Current - Collector Pulsed (Icm) | 100 A |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 25A |
| Power - Max | 521 W |
| Switching Energy | 742µJ (on), 427µJ (off) |
| Input Type | Standard |
| Gate Charge | 203 nC |
| Td (on/off) @ 25°C | 16ns/122ns |
| Test Condition | 600V, 25A, 4.3Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
| Supplier Device Package | D3Pak |
Submit your RFQ for APT25GR120S and get a quote within 24 hours.
