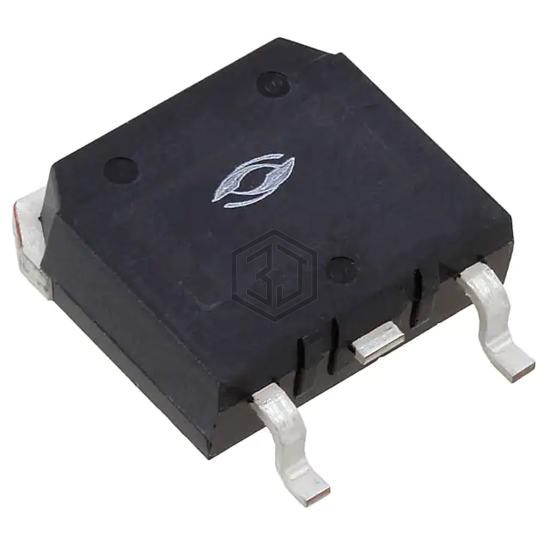

IGBT 1200V 67A 272W D3PAK
APT25GN120SG is a Transistors - IGBTs - Single manufactured by Microchip Technology. IGBT 1200V 67A 272W D3PAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA, current - collector (ic) (max) 67 A.
In Stock: 89
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 67 A |
| Current - Collector Pulsed (Icm) | 75 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 25A |
| Power - Max | 272 W |
| Switching Energy | - |
| Input Type | Standard |
| Gate Charge | 155 nC |
| Td (on/off) @ 25°C | 22ns/280ns |
| Test Condition | 800V, 25A, 1Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
| Supplier Device Package | D3Pak |
Submit your RFQ for APT25GN120SG and get a quote within 24 hours.
