IGBT FIELDSTOP COMBI 600V 20A TO

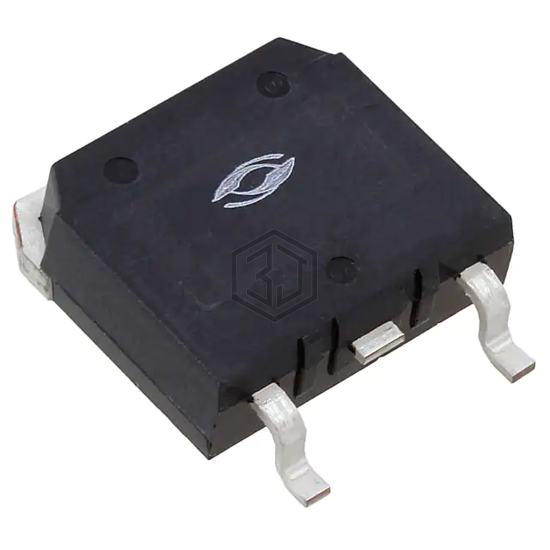

APT20GN60SDQ2G is a Transistors - IGBTs - Single manufactured by Microchip Technology. IGBT FIELDSTOP COMBI 600V 20A TO. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA, current - collector (ic) (max) 40 A.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 40 A |
| Current - Collector Pulsed (Icm) | 60 A |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 20A |
| Power - Max | 136 W |
| Switching Energy | 230µJ (on), 580µJ (off) |
| Input Type | Standard |
| Gate Charge | 120 nC |
| Td (on/off) @ 25°C | 9ns/140ns |
| Test Condition | 400V, 20A, 4.3Ohm, 15V |
| Reverse Recovery Time (trr) | 30 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
| Supplier Device Package | D3PAK |
Submit your RFQ for APT20GN60SDQ2G and get a quote within 24 hours.
