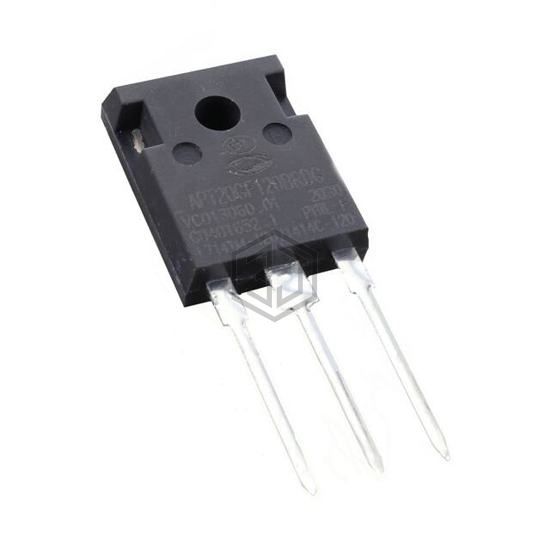

IGBT NPT COMBI 1200V 20A TO-247
APT20GF120BRDG is a Transistors - IGBTs - Single manufactured by Microchip Technology. IGBT NPT COMBI 1200V 20A TO-247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 32 A.
In Stock: 31
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 32 A |
| Current - Collector Pulsed (Icm) | 64 A |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 15A |
| Power - Max | 200 W |
| Switching Energy | - |
| Input Type | Standard |
| Gate Charge | 140 nC |
| Td (on/off) @ 25°C | 17ns, 93ns |
| Test Condition | 792V, 20A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 85 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247-3 |
Submit your RFQ for APT20GF120BRDG and get a quote within 24 hours.
