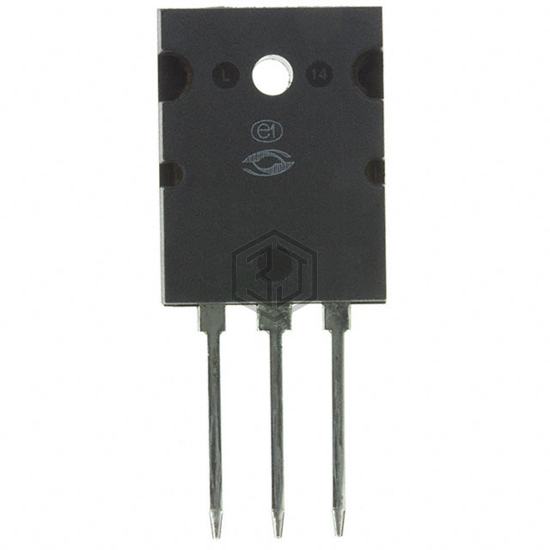

IGBT 600V 220A 536W TO-264L
APT150GN60LDQ4G is a Transistors - IGBTs - Single manufactured by Microchip Technology. IGBT 600V 220A 536W TO-264L. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-264-3, TO-264AA, current - collector (ic) (max) 220 A.
In Stock: 2,146
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 220 A |
| Current - Collector Pulsed (Icm) | 450 A |
| Vce(on) (Max) @ Vge, Ic | 1.85V @ 15V, 150A |
| Power - Max | 536 W |
| Switching Energy | 8.81mJ (on), 4.295mJ (off) |
| Input Type | Standard |
| Gate Charge | 970 nC |
| Td (on/off) @ 25°C | 44ns/430ns |
| Test Condition | 400V, 150A, 1Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-264-3, TO-264AA |
| Supplier Device Package | TO-264 [L] |
Submit your RFQ for APT150GN60LDQ4G and get a quote within 24 hours.
