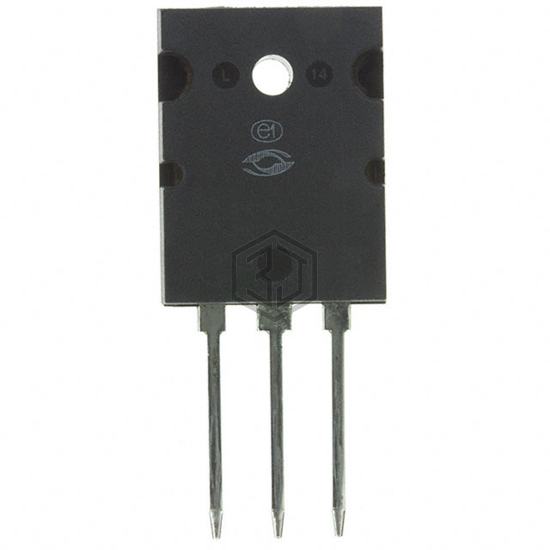

IGBT 600V 183A 780W TO264
APT102GA60L is a Transistors - IGBTs - Single manufactured by Microchip Technology. IGBT 600V 183A 780W TO264. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-264-3, TO-264AA, current - collector (ic) (max) 183 A.
In Stock: 9,286
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | PT |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 183 A |
| Current - Collector Pulsed (Icm) | 307 A |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 62A |
| Power - Max | 780 W |
| Switching Energy | 1.354mJ (on), 1.614mJ (off) |
| Input Type | Standard |
| Gate Charge | 294 nC |
| Td (on/off) @ 25°C | 28ns/212ns |
| Test Condition | 400V, 62A, 4.7Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-264-3, TO-264AA |
| Supplier Device Package | TO-264 [L] |
Submit your RFQ for APT102GA60L and get a quote within 24 hours.
