IGBT 1200V 40A TO-247

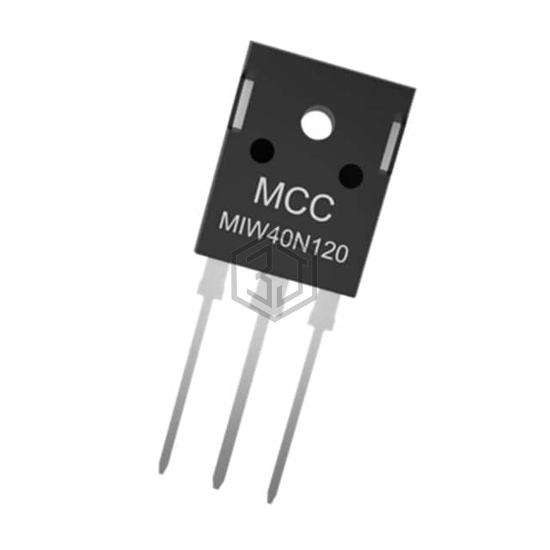

MIW40N120-BP is a Transistors - IGBTs - Single manufactured by Micro Commercial Co. IGBT 1200V 40A TO-247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 80 A.
In Stock: 6,708
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 80 A |
| Current - Collector Pulsed (Icm) | 160 A |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 40A |
| Power - Max | 277 W |
| Switching Energy | 3.3mJ (on), 1.4mJ (off) |
| Input Type | Standard |
| Gate Charge | 239 nC |
| Td (on/off) @ 25°C | 62ns/265ns |
| Test Condition | 600V, 40A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 80 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247-3 |
