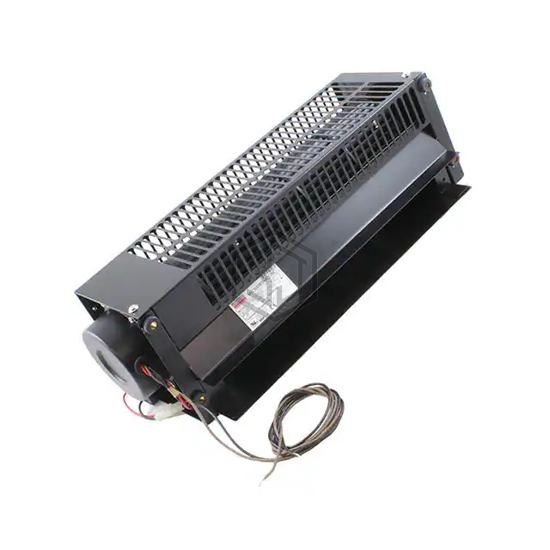

FAN BLWR CF 120VAC 420X150X130MM
UF9029CBP12H-L is a AC Fans manufactured by Mechatronics Fan Group. FAN BLWR CF 120VAC 420X150X130MM. Key specifications: operating temperature -40 ~ 158°F (-40 ~ 70°C), voltage - rated 120VAC, size / dimension Rectangular - 420mm L x 130mm H, termination 2 Wire Leads.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 120VAC |
| Size / Dimension | Rectangular - 420mm L x 130mm H |
| Width | 125.0mm |
| Air Flow | 177.1 CFM (4.96m³/min) |
| Static Pressure | 0.130 in H2O (32.4 Pa) |
| Bearing Type | Ball |
| Fan Type | Blower, Cross Flow |
| Features | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) |
| Noise | 46.0dB(A) |
| Power (Watts) | 31.00W |
| RPM | 1560 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Approval Agency | CE, cUL, TUV, UL |
| Weight | 6.6 lbs (3 kg) |
Submit your RFQ for UF9029CBP12H-L and get a quote within 24 hours.
