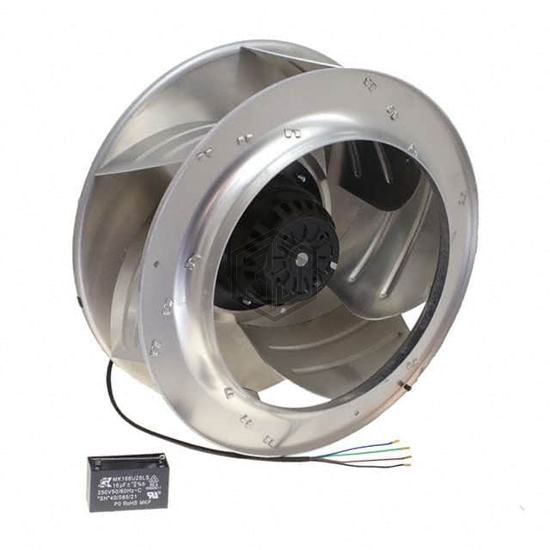

FAN IMP MTRZ 318X154.4MM 115VAC
UF318AAA12-H1C4A-CC is a AC Fans manufactured by Mechatronics Fan Group. FAN IMP MTRZ 318X154.4MM 115VAC. Key specifications: operating temperature -4 ~ 158°F (-20 ~ 70°C), voltage - rated 115VAC, size / dimension Round - 318mm Dia, termination 4 Wire Leads.
In Stock: 7,180
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 115VAC |
| Size / Dimension | Round - 318mm Dia |
| Width | 154.4mm |
| Air Flow | 1165.0 CFM (32.62m³/min) |
| Static Pressure | 1.600 in H2O (398.6 Pa) |
| Bearing Type | Ball |
| Fan Type | Motorized Impellers |
| Features | Conformal Coating, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) |
| Noise | 66.0dB(A) |
| Power (Watts) | 160W |
| RPM | 1580 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency | CE, cUL, TUV, UL |
| Weight | 8.3 lbs (3.8 kg) |
Submit your RFQ for UF318AAA12-H1C4A-CC and get a quote within 24 hours.
