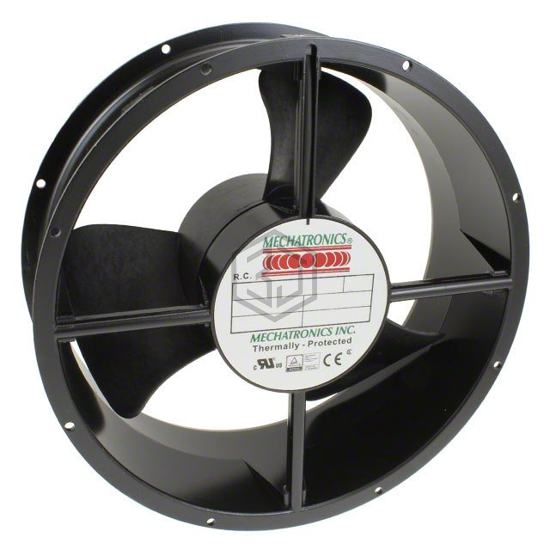

FAN 254X80MM 115V IP55 SALT FOG
UF25GC12-BTHNSR is a AC Fans manufactured by Mechatronics Fan Group. FAN 254X80MM 115V IP55 SALT FOG. Key specifications: operating temperature -40 ~ 158°F (-40 ~ 70°C), voltage - rated 115VAC, size / dimension Round - 254mm Dia, termination 2 Terminals.
In Stock: 2,827
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 115VAC |
| Size / Dimension | Round - 254mm Dia |
| Width | 89.00mm |
| Air Flow | 550.0 CFM (15.40m³/min) |
| Static Pressure | 0.400 in H2O (99.6 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Permanent Split Capacitor Motor, Salt Fog Rated, Thermal Overload Protector (TOP) |
| Noise | 55.0dB(A) |
| Power (Watts) | 33.00W |
| RPM | 1650 RPM |
| Termination | 2 Terminals |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Approval Agency | CE, cUL, TUV, UL |
| Weight | 4.1 lbs (1.9 kg) |
Submit your RFQ for UF25GC12-BTHNSR and get a quote within 24 hours.
