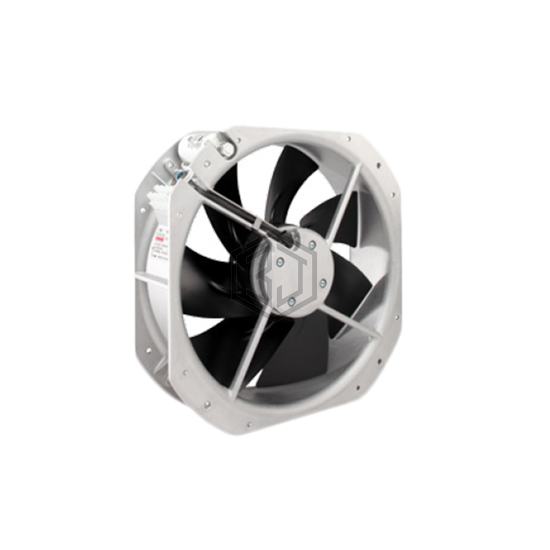

FAN AXIAL 280X80MM 115VAC TACH
UF250BMB12-H1C2A-B1 is a AC Fans manufactured by Mechatronics Fan Group. FAN AXIAL 280X80MM 115VAC TACH. Key specifications: operating temperature -4 ~ 158°F (-20 ~ 70°C), voltage - rated 115VAC, size / dimension Square - 280mm L x 280mm H, termination 3 Terminals.
In Stock: 1,862
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 115VAC |
| Size / Dimension | Square - 280mm L x 280mm H |
| Width | 80.00mm |
| Air Flow | 1130.0 CFM (31.64m³/min) |
| Static Pressure | 0.780 in H2O (194.3 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP) |
| Noise | 70.0dB(A) |
| Power (Watts) | 148W |
| RPM | 2700 RPM |
| Termination | 3 Terminals |
| Ingress Protection | - |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency | CE, cUL, TUV, UL |
| Weight | 6.1 lbs (2.8 kg) |
Submit your RFQ for UF250BMB12-H1C2A-B1 and get a quote within 24 hours.
