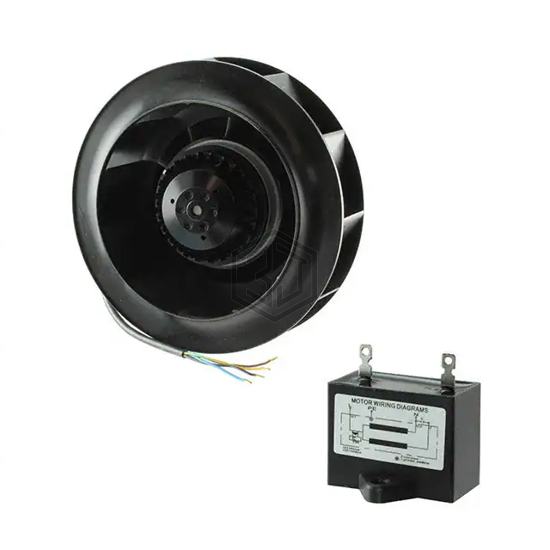

FAN IMP 223X71MM 115VAC TACH
UF220APA12-H2C2A-B1 is a AC Fans manufactured by Mechatronics Fan Group. FAN IMP 223X71MM 115VAC TACH. Key specifications: operating temperature -40 ~ 122°F (-40 ~ 50°C), voltage - rated 115VAC, size / dimension Round - 223mm Dia, termination 4 Wire Leads.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 115VAC |
| Size / Dimension | Round - 223mm Dia |
| Width | 71.00mm |
| Air Flow | 530.0 CFM (14.84m³/min) |
| Static Pressure | 1.700 in H2O (423.5 Pa) |
| Bearing Type | Ball |
| Fan Type | Motorized Impellers |
| Features | Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP) |
| Noise | 70.0dB(A) |
| Power (Watts) | 117W |
| RPM | 2650 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | -40 ~ 122°F (-40 ~ 50°C) |
| Approval Agency | CE, cUL, TUV, UL |
| Weight | 3.2 lbs (1.5 kg) |
Submit your RFQ for UF220APA12-H2C2A-B1 and get a quote within 24 hours.
