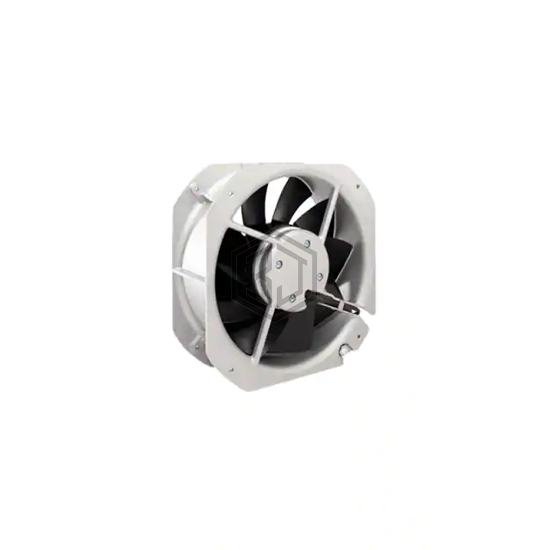

FAN AXIAL 200X71MM 115VAC TACH
UF200BMB12-H2C2A-B1 is a AC Fans manufactured by Mechatronics Fan Group. FAN AXIAL 200X71MM 115VAC TACH. Key specifications: operating temperature -4 ~ 158°F (-20 ~ 70°C), voltage - rated 115VAC, size / dimension Square - 225mm L x 225mm H, termination 4 Terminals.
In Stock: 6,601
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 115VAC |
| Size / Dimension | Square - 225mm L x 225mm H |
| Width | 80.00mm |
| Air Flow | 625.0 CFM (17.50m³/min) |
| Static Pressure | 0.810 in H2O (201.8 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP) |
| Noise | 61.0dB(A) |
| Power (Watts) | 100W |
| RPM | 3000 RPM |
| Termination | 4 Terminals |
| Ingress Protection | - |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency | CE, cUL, TUV, UL |
| Weight | 3 lbs (1.4 kg) |
Submit your RFQ for UF200BMB12-H2C2A-B1 and get a quote within 24 hours.
