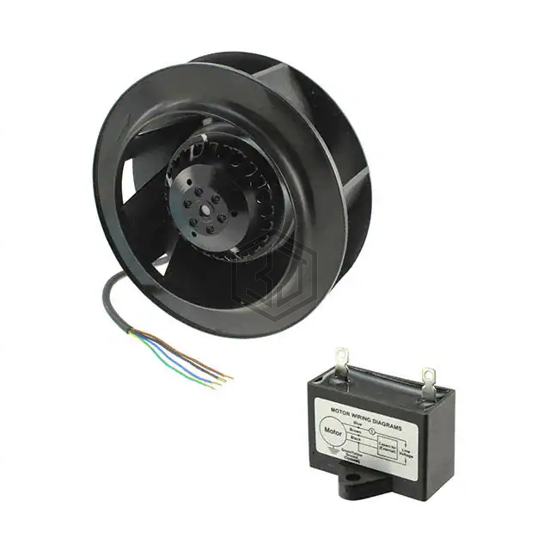

FAN IMP 190X70MM 115VAC TACH
UF190APA12-H1C2A-B1 is a AC Fans manufactured by Mechatronics Fan Group. FAN IMP 190X70MM 115VAC TACH. Key specifications: operating temperature -40 ~ 122°F (-40 ~ 50°C), voltage - rated 115VAC, size / dimension Round - 190mm Dia, termination 4 Wire Leads.
In Stock: 2,059
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 115VAC |
| Size / Dimension | Round - 190mm Dia |
| Width | 70.00mm |
| Air Flow | 370.0 CFM (10.36m³/min) |
| Static Pressure | 1.200 in H2O (298.9 Pa) |
| Bearing Type | Ball |
| Fan Type | Motorized Impellers |
| Features | Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP) |
| Noise | 63.0dB(A) |
| Power (Watts) | 65.0W |
| RPM | 2700 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | -40 ~ 122°F (-40 ~ 50°C) |
| Approval Agency | CE, cUL, TUV, UL |
| Weight | 2.7 lbs (1.2 kg) |
Submit your RFQ for UF190APA12-H1C2A-B1 and get a quote within 24 hours.
