FN 172X150X51MM 115V IP55 SLT FG

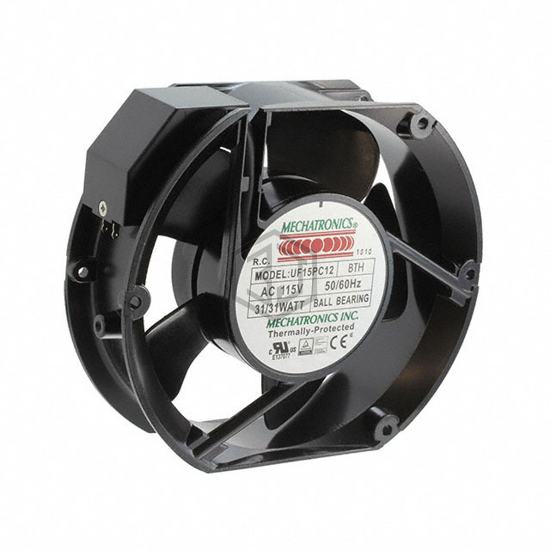

UF15PC12-BTHNSR is a AC Fans manufactured by Mechatronics Fan Group. FN 172X150X51MM 115V IP55 SLT FG. Key specifications: operating temperature -40 ~ 158°F (-40 ~ 70°C), voltage - rated 115VAC, size / dimension Rectangular/Rounded - 172mm L x 150mm H, termination 2 Terminals.
In Stock: 3,543
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 115VAC |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H |
| Width | 51.00mm |
| Air Flow | 226.0 CFM (6.33m³/min) |
| Static Pressure | 0.790 in H2O (196.8 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Permanent Split Capacitor Motor, Salt Fog Rated, Thermal Overload Protector (TOP) |
| Noise | 58.0dB(A) |
| Power (Watts) | 31.00W |
| RPM | 3400 RPM |
| Termination | 2 Terminals |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Approval Agency | CE, cUL, TUV, UL |
| Weight | 1.8 lbs (816.5 g) |
Submit your RFQ for UF15PC12-BTHNSR and get a quote within 24 hours.
