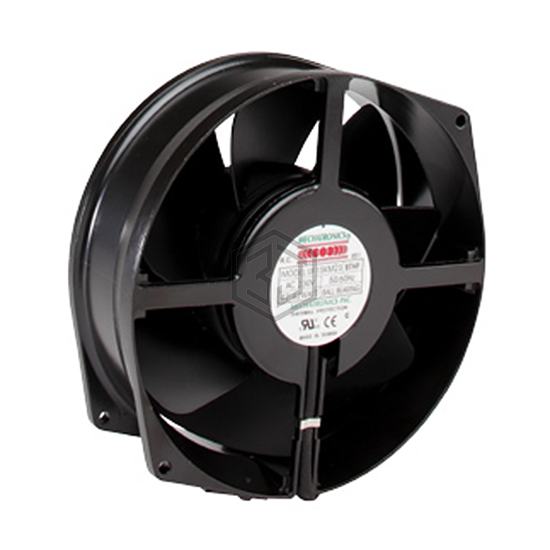

FAN 172X150X55MM 230V HIGH TEMP
UF15KMR23-BWHR-F is a AC Fans manufactured by Mechatronics Fan Group. FAN 172X150X55MM 230V HIGH TEMP. Key specifications: operating temperature -40 ~ 194°F (-40 ~ 90°C), voltage - rated 230VAC, size / dimension Rectangular/Rounded - 172mm L x 150mm H, termination 2 Wire Leads.
In Stock: 9,619
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 230VAC |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H |
| Width | 55.00mm |
| Air Flow | 255.0 CFM (7.14m³/min) |
| Static Pressure | 0.500 in H2O (124.5 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Reverse Air Flow, Thermal Overload Protector (TOP) |
| Noise | 61.0dB(A) |
| Power (Watts) | 45.00W |
| RPM | 3250 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | -40 ~ 194°F (-40 ~ 90°C) |
| Approval Agency | CE, cUL, TUV, UL |
| Weight | 2.4 lbs (1.1 kg) |
Submit your RFQ for UF15KMR23-BWHR-F and get a quote within 24 hours.
