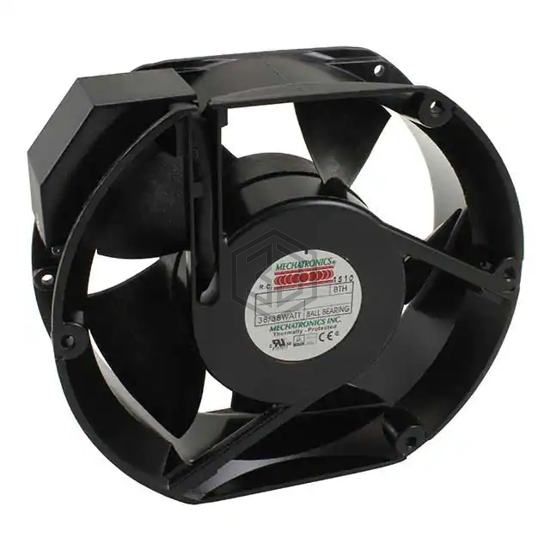

FAN AXIAL 172X150X55MM 230VAC
UF15KC23-BTHR is a AC Fans manufactured by Mechatronics Fan Group. FAN AXIAL 172X150X55MM 230VAC. Key specifications: operating temperature -40 ~ 158°F (-40 ~ 70°C), voltage - rated 230VAC, size / dimension Rectangular/Rounded - 172mm L x 150mm H, termination 3 Terminals.
In Stock: 350
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 230VAC |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H |
| Width | 55.00mm |
| Air Flow | 293.0 CFM (8.20m³/min) |
| Static Pressure | 0.900 in H2O (224.2 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) |
| Noise | 60.0dB(A) |
| Power (Watts) | 38.00W |
| RPM | 3400 RPM |
| Termination | 3 Terminals |
| Ingress Protection | - |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Approval Agency | CE, cUL, TUV, UL |
| Weight | 2.3 lbs (1 kg) |
Submit your RFQ for UF15KC23-BTHR and get a quote within 24 hours.
