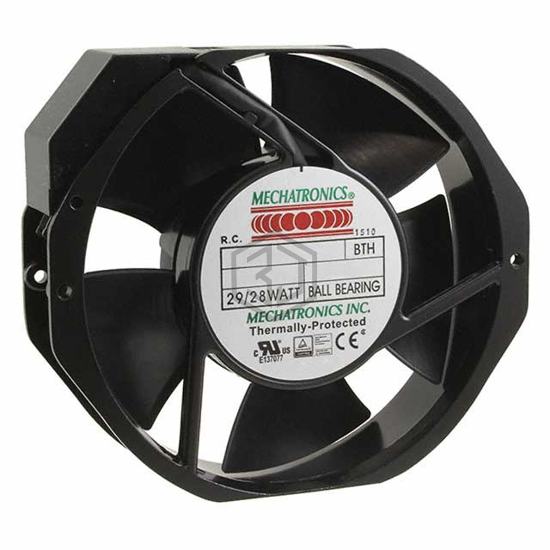

FAN AXIAL 172X150X38MM 115/230V
UF15AC12/23-BWHR is a AC Fans manufactured by Mechatronics Fan Group. FAN AXIAL 172X150X38MM 115/230V. Key specifications: operating temperature -40 ~ 158°F (-40 ~ 70°C), voltage - rated 115/230VAC, size / dimension Rectangular/Rounded - 172mm L x 150mm H, termination 2 Wire Leads.
In Stock: 7,827
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 115/230VAC |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H |
| Width | 38.00mm |
| Air Flow | 212.0 CFM (5.94m³/min) |
| Static Pressure | 0.750 in H2O (186.8 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Dual Voltage, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) |
| Noise | 58.0dB(A) |
| Power (Watts) | 26.00W, 28.00W |
| RPM | 3400 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Approval Agency | CE, cUL, TUV, UL |
| Weight | 1.6 lbs (725.7 g) |
