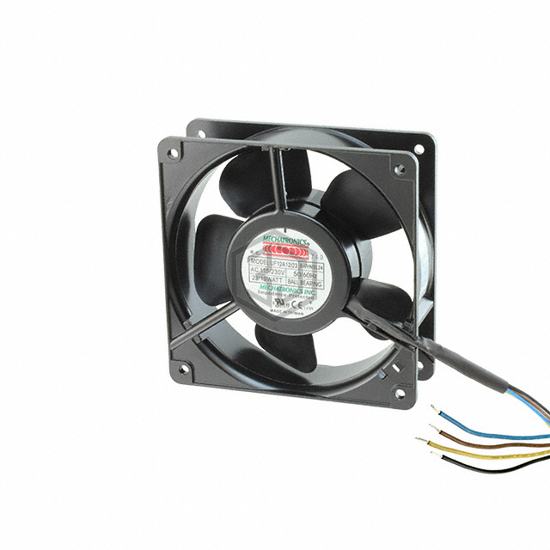

FAN AXIAL 120X38MM 115/230VAC
UF12A12/23-BWHNSR-L24 is a AC Fans manufactured by Mechatronics Fan Group. FAN AXIAL 120X38MM 115/230VAC. Key specifications: operating temperature -40 ~ 158°F (-40 ~ 70°C), voltage - rated 115/230VAC, size / dimension Square - 120mm L x 120mm H, termination 4 Wire Leads.
In Stock: 28
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 115/230VAC |
| Size / Dimension | Square - 120mm L x 120mm H |
| Width | 38.00mm |
| Air Flow | 106.0 CFM (2.97m³/min) |
| Static Pressure | 0.350 in H2O (87.2 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Dual Voltage, Salt Fog Rated |
| Noise | 46.0dB(A) |
| Power (Watts) | 12.00W, 15.00W |
| RPM | 3100 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Approval Agency | CE, cUL, UL |
| Weight | 1.168 lbs (530 g) |
