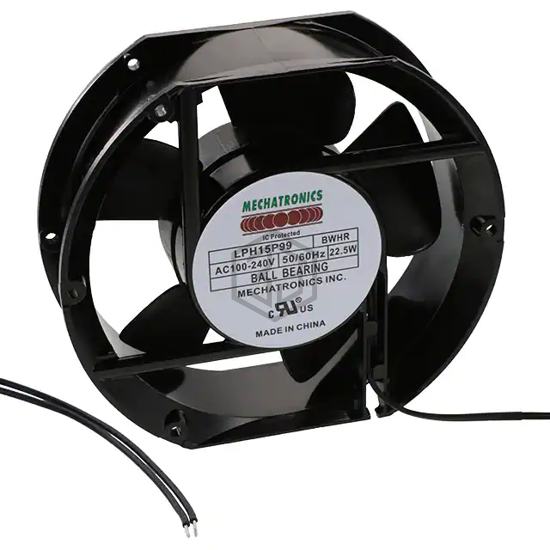

FAN AXIAL 172X51.5MM 100-240VAC
LPH15P99-BWHR is a AC Fans manufactured by Mechatronics Fan Group. FAN AXIAL 172X51.5MM 100-240VAC. Key specifications: operating temperature -40 ~ 158°F (-40 ~ 70°C), voltage - rated 100 ~ 240VAC, size / dimension Rectangular/Rounded - 172mm L x 152mm H, termination 2 Wire Leads.
In Stock: 215
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 100 ~ 240VAC |
| Size / Dimension | Rectangular/Rounded - 172mm L x 152mm H |
| Width | 51.50mm |
| Air Flow | 228.0 CFM (6.38m³/min) |
| Static Pressure | 0.600 in H2O (149.5 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Electronic Commutation (EC) |
| Noise | 55.0dB(A) |
| Power (Watts) | 22.50W |
| RPM | 3200 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Approval Agency | CE, cUL, TUV, UL |
| Weight | 1.6 lbs (725.7 g) |
Submit your RFQ for LPH15P99-BWHR and get a quote within 24 hours.
