Ledex Dormeyer Saia, a Division of Johnson Electri

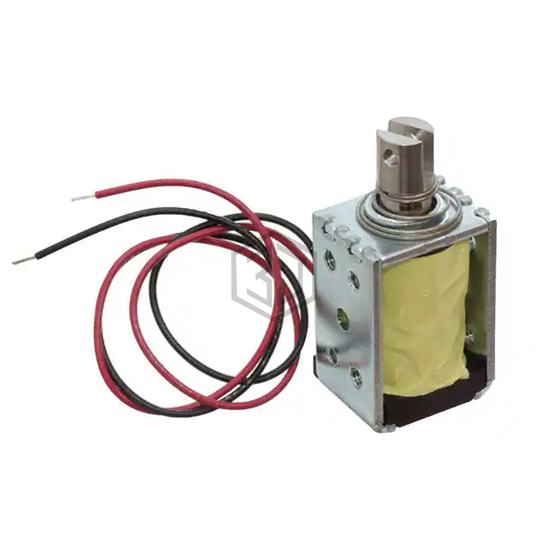

OPEN FRAME LATCH SOLENOID 24V
B14HD-L-254-B-4 is a Solenoids, Actuators manufactured by Ledex Dormeyer Saia, a Division of Johnson Electri. OPEN FRAME LATCH SOLENOID 24V. Key specifications: mounting type Chassis Mount, voltage - rated 24VDC, size / dimension 1.460" L x 0.790" W x 1.024" H (37.08mm x 20.07mm x 26.01mm), termination style Wire Leads.
In Stock: 421
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Electromechanical |
| Type | Open Frame Latching (Pull) |
| Duty Cycle | Intermittent |
| Voltage - Rated | 24VDC |
| Stroke Length | 0.400" (10.16mm) |
| Power (Watts) | 22 W |
| DC Resistance (DCR) | 27.5Ohm |
| Bushing Thread | - |
| Mounting Type | Chassis Mount |
| Termination Style | Wire Leads |
| Size / Dimension | 1.460" L x 0.790" W x 1.024" H (37.08mm x 20.07mm x 26.01mm) |
| Diameter - Shaft | 0.394" (10.00mm) |
| Shaft Detail | Clevis |
Submit your RFQ for B14HD-L-254-B-4 and get a quote within 24 hours.
