Ledex Dormeyer Saia, a Division of Johnson Electri

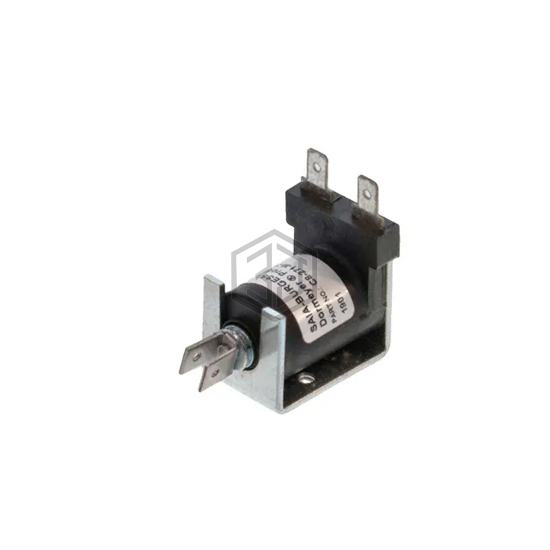

OPEN FRAME SOLENOID C8 - 24 VDC
C8-271-M-36 is a Solenoids, Actuators manufactured by Ledex Dormeyer Saia, a Division of Johnson Electri. OPEN FRAME SOLENOID C8 - 24 VDC. Key specifications: mounting type Chassis Mount, voltage - rated 24VDC, size / dimension 1.130" L x 0.750" W x 0.810" H (28.70mm x 19.05mm x 20.57mm), termination style Quick Connect - 0.187" (4.7mm).
In Stock: 206
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Electromechanical |
| Type | Open Frame (Pull) |
| Duty Cycle | Continuous |
| Voltage - Rated | 24VDC |
| Stroke Length | 0.250" (6.35mm) |
| Power (Watts) | 3.6 W |
| DC Resistance (DCR) | 150.7Ohm |
| Bushing Thread | - |
| Mounting Type | Chassis Mount |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Size / Dimension | 1.130" L x 0.750" W x 0.810" H (28.70mm x 19.05mm x 20.57mm) |
| Diameter - Shaft | 0.250" (6.35mm) |
| Shaft Detail | Clevis |
Submit your RFQ for C8-271-M-36 and get a quote within 24 hours.
