Ledex Dormeyer Saia, a Division of Johnson Electri

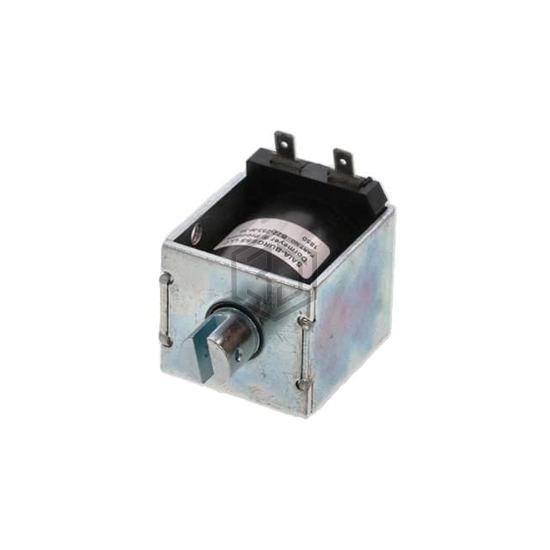

OPEN FRAME SOLENOID B22 - 24 VDC
B22-253-M-36 is a Solenoids, Actuators manufactured by Ledex Dormeyer Saia, a Division of Johnson Electri. OPEN FRAME SOLENOID B22 - 24 VDC. Key specifications: mounting type Chassis Mount, voltage - rated 24VDC, size / dimension 1.610" L x 1.310" W x 1.470" H (40.89mm x 33.27mm x 37.34mm), termination style Quick Connect - 0.187" (4.7mm).
In Stock: 71
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Electromechanical |
| Type | Open Frame (Pull) |
| Duty Cycle | Continuous |
| Voltage - Rated | 24VDC |
| Stroke Length | 0.500" (12.70mm) |
| Power (Watts) | 9.9 W |
| DC Resistance (DCR) | 58.2Ohm |
| Bushing Thread | - |
| Mounting Type | Chassis Mount |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Size / Dimension | 1.610" L x 1.310" W x 1.470" H (40.89mm x 33.27mm x 37.34mm) |
| Diameter - Shaft | 0.500" (12.70mm) |
| Shaft Detail | Clevis |
Submit your RFQ for B22-253-M-36 and get a quote within 24 hours.
