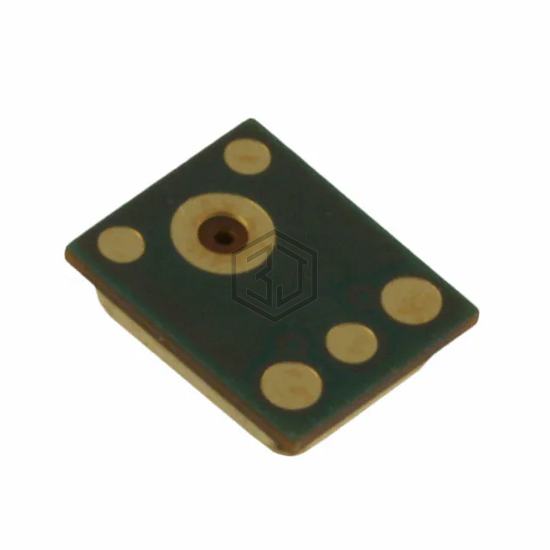

MICROPHONE MEMS ANLG OMNI IOT
SPU0410LR5H-QB is a Microphones manufactured by Knowles. MICROPHONE MEMS ANLG OMNI IOT. Key specifications: current - supply 160 µA, size / dimension 0.148" L x 0.118" W (3.76mm x 3.00mm), termination Solder Pads, output type Analog.
In Stock: 63,347
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | MEMS (Silicon) |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 100 Hz ~ 80 kHz |
| Sensitivity | -38dB ±3dB @ 94dB SPL |
| S/N Ratio | 63dB |
| Impedance | 400 Ohms |
| Voltage - Rated | - |
| Voltage Range | 1.5 V ~ 3.6 V |
| Current - Supply | 160 µA |
| Port Location | Bottom |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.148" L x 0.118" W (3.76mm x 3.00mm) |
| Height (Max) | 0.047" (1.20mm) |
| Shape | Rectangular |
Submit your RFQ for SPU0410LR5H-QB and get a quote within 24 hours.
