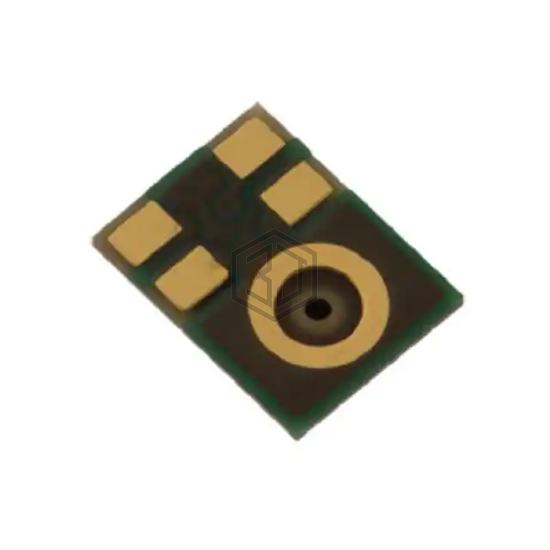

MICROPHONE MEMS ANALOG OMNI
SPH6611LR5H-1 is a Microphones manufactured by Knowles. MICROPHONE MEMS ANALOG OMNI. Key specifications: current - supply 185 µA, size / dimension 0.138" L x 0.104" W (3.50mm x 2.65mm), termination Solder Pads, output type Analog.
In Stock: 10,230
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | MEMS (Silicon) |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 50 Hz ~ 80 kHz |
| Sensitivity | -38dB ±3dB @ 94dB SPL |
| S/N Ratio | 65dB |
| Impedance | - |
| Voltage - Rated | - |
| Voltage Range | - |
| Current - Supply | 185 µA |
| Port Location | Bottom |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.138" L x 0.104" W (3.50mm x 2.65mm) |
| Height (Max) | 0.043" (1.08mm) |
| Shape | Rectangular |
