MICROPHONE COND ANALOG NC -52DB

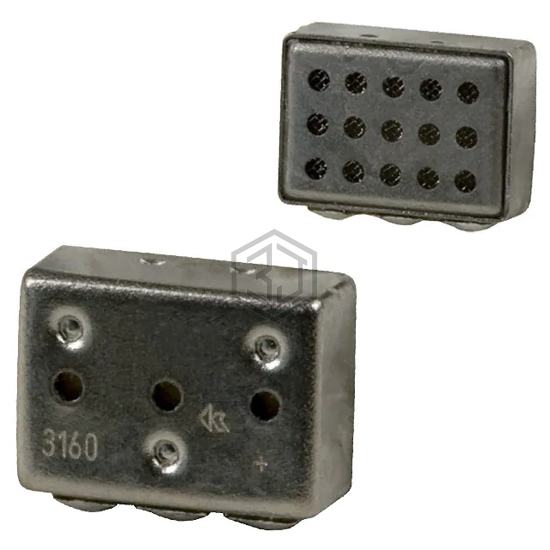

NR-23160-000 is a Microphones manufactured by Knowles. MICROPHONE COND ANALOG NC -52DB. Key specifications: voltage - rated 1.3 V, current - supply 200 µA, size / dimension 0.219" L x 0.157" W (5.56mm x 3.99mm), termination Solder Pads.
In Stock: 152
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Electret Condenser |
| Output Type | Analog |
| Direction | Noise Cancelling |
| Frequency Range | 100 Hz ~ 4 kHz |
| Sensitivity | -52dB ±3dB @ 74dB SPL |
| S/N Ratio | - |
| Impedance | 2.5 kOhms |
| Voltage - Rated | 1.3 V |
| Voltage Range | 1.3 V ~ 10 V |
| Current - Supply | 200 µA |
| Port Location | Top |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.219" L x 0.157" W (5.56mm x 3.99mm) |
| Height (Max) | 0.089" (2.26mm) |
| Shape | Rectangular |
Submit your RFQ for NR-23160-000 and get a quote within 24 hours.
