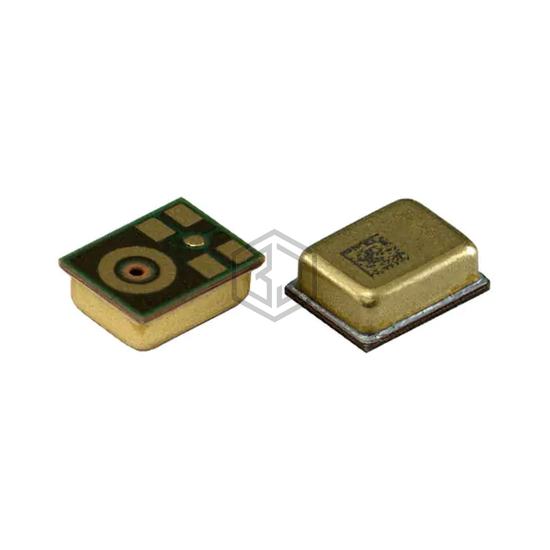

ANALOG BTM PORT AUTOMOTIVE MIC
SPH1878LR5H-C is a Microphones manufactured by Knowles. ANALOG BTM PORT AUTOMOTIVE MIC. Key specifications: voltage - rated 2.75 V, current - supply 250 µA, size / dimension 0.138" L x 0.104" W (3.50mm x 2.65mm), termination Solder Pads.
In Stock: 9,159
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | MEMS (Silicon) |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 7 Hz ~ 36 kHz |
| Sensitivity | -44dB ±0.5dB SPL |
| S/N Ratio | 67dB |
| Impedance | - |
| Voltage - Rated | 2.75 V |
| Voltage Range | 2.3 V ~ 3.6 V |
| Current - Supply | 250 µA |
| Port Location | Bottom |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.138" L x 0.104" W (3.50mm x 2.65mm) |
| Height (Max) | 0.050" (1.26mm) |
| Shape | Rectangular |
Submit your RFQ for SPH1878LR5H-C and get a quote within 24 hours.
