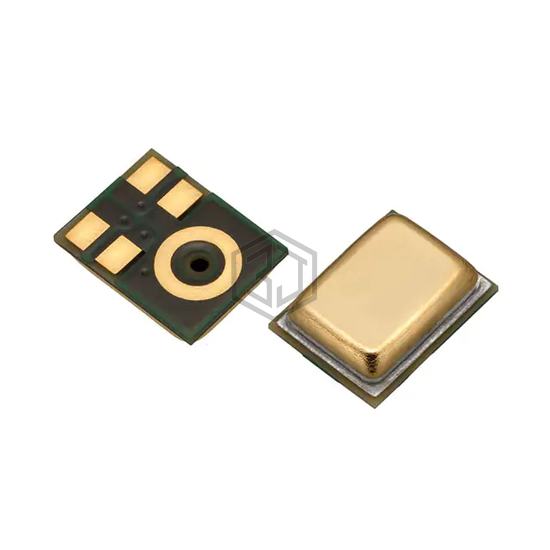

MICROPHONE MEMS ANALOG OMNI
SPH1611LR5H-1 is a Microphones manufactured by Knowles. MICROPHONE MEMS ANALOG OMNI. Key specifications: current - supply 185 µA, size / dimension 0.138" L x 0.104" W (3.50mm x 2.65mm), termination Solder Pads, output type Analog.
In Stock: 1,398
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | MEMS (Silicon) |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 100 Hz ~ 10 kHz |
| Sensitivity | -38dB ±1dB @ 94dB SPL |
| S/N Ratio | 65dB |
| Impedance | 400 Ohms |
| Voltage - Rated | - |
| Voltage Range | 1.5 V ~ 3.6 V |
| Current - Supply | 185 µA |
| Port Location | Bottom |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.138" L x 0.104" W (3.50mm x 2.65mm) |
| Height (Max) | 0.043" (1.10mm) |
| Shape | Rectangular |
Submit your RFQ for SPH1611LR5H-1 and get a quote within 24 hours.
