MORE BTM PORT ULTRASONIC MIC

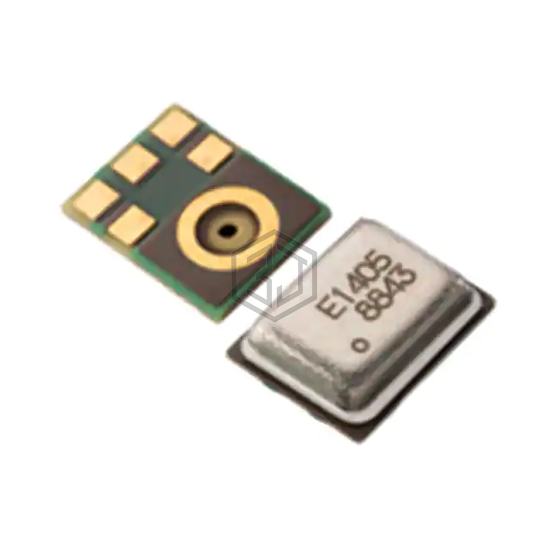

SPH0641LU4H-1 is a Microphones manufactured by Knowles. MORE BTM PORT ULTRASONIC MIC. Key specifications: current - supply 1 mA, size / dimension 0.138" L x 0.104" W (3.50mm x 2.65mm), termination Solder Pads, output type Digital, PDM.
In Stock: 42,688
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | MEMS (Silicon) |
| Output Type | Digital, PDM |
| Direction | Omnidirectional |
| Frequency Range | 100 Hz ~ 80 kHz |
| Sensitivity | -26dB ±1dB @ 94dB SPL |
| S/N Ratio | 64.3dB |
| Impedance | - |
| Voltage - Rated | - |
| Voltage Range | 1.62 V ~ 3.6 V |
| Current - Supply | 1 mA |
| Port Location | Bottom |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.138" L x 0.104" W (3.50mm x 2.65mm) |
| Height (Max) | 0.043" (1.10mm) |
| Shape | Rectangular |
Submit your RFQ for SPH0641LU4H-1 and get a quote within 24 hours.
