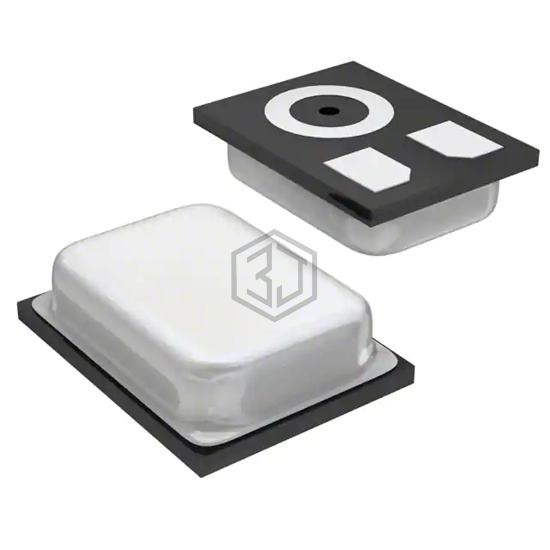

SPA2410LR5H-B - Knowles - Microphones

SPA2410LR5H-B

Knowles

MICROPHONE MEMS ANALOG OMNI

SPA2410LR5H-B is a Microphones manufactured by Knowles. MICROPHONE MEMS ANALOG OMNI. Key specifications: current - supply 160 µA, size / dimension 0.132" L x 0.098" W (3.35mm x 2.50mm), termination Solder Pads, output type Analog.

In Stock: 4,753

Product Attributes

AttributeValue
Product StatusObsolete
TypeMEMS (Silicon)
Output TypeAnalog
DirectionOmnidirectional
Frequency Range100 Hz ~ 15 kHz
Sensitivity-38dB ±3dB @ 94dB SPL
S/N Ratio63dB
Impedance400 Ohms
Voltage - Rated-
Voltage Range1.5 V ~ 3.6 V
Current - Supply160 µA
Port LocationBottom
Ratings-
TerminationSolder Pads
Size / Dimension0.132" L x 0.098" W (3.35mm x 2.50mm)
Height (Max)0.043" (1.10mm)
ShapeRectangular

Frequently Asked Questions

SPA2410LR5H-B is a Microphones manufactured by Knowles. MICROPHONE MEMS ANALOG OMNI

The current rating of SPA2410LR5H-B is 160 µA.

The size of SPA2410LR5H-B is 0.132" L x 0.098" W (3.35mm x 2.50mm).

The termination type of SPA2410LR5H-B is Solder Pads.

The resistance of SPA2410LR5H-B is 400 Ohms.
