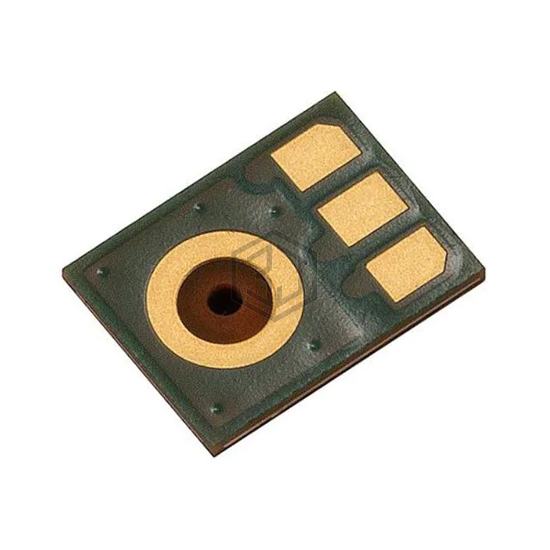

SPA1687LR5H-1 - Knowles - Microphones

SPA1687LR5H-1

Knowles

ALTMAN MIC ANALOG BOTTOM PORT

SPA1687LR5H-1 is a Microphones manufactured by Knowles. ALTMAN MIC ANALOG BOTTOM PORT. Key specifications: voltage - rated 2.7 V, current - supply 325 µA, size / dimension 0.132" L x 0.098" W (3.35mm x 2.50mm), termination Solder Pads.

In Stock: 8,225

Product Attributes

AttributeValue
Product StatusNot For New Designs
TypeMEMS (Silicon)
Output TypeAnalog
DirectionOmnidirectional
Frequency Range100 Hz ~ 10 kHz
Sensitivity-38dB ±3dB @ 94dB SPL
S/N Ratio65dB
Impedance-
Voltage - Rated2.7 V
Voltage Range-
Current - Supply325 µA
Port LocationBottom
Ratings-
TerminationSolder Pads
Size / Dimension0.132" L x 0.098" W (3.35mm x 2.50mm)
Height (Max)0.043" (1.08mm)
ShapeRectangular

Frequently Asked Questions

SPA1687LR5H-1 is a Microphones manufactured by Knowles. ALTMAN MIC ANALOG BOTTOM PORT

The supply voltage of SPA1687LR5H-1 is 2.7 V.

The current rating of SPA1687LR5H-1 is 325 µA.

The size of SPA1687LR5H-1 is 0.132" L x 0.098" W (3.35mm x 2.50mm).

Yes, SPA1687LR5H-1 is listed as Not For New Designs. Consider requesting a quote for alternative parts.
