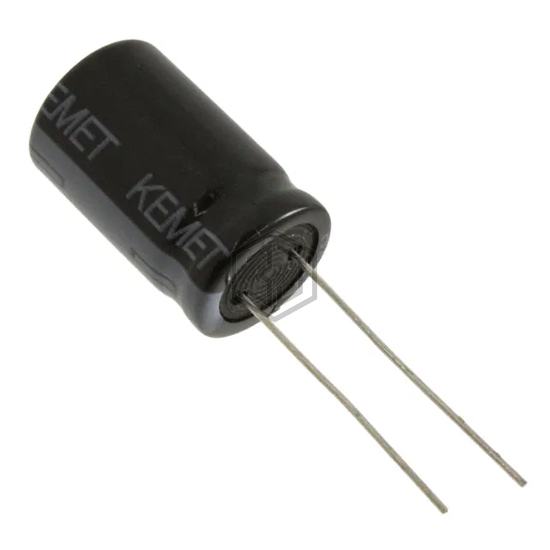

CAP ALUM 470UF 20% 50V RADIAL
EST477M050AL3AA is a Aluminum Electrolytic Capacitors manufactured by KEMET. CAP ALUM 470UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 1,642
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 160 mohm @ 100kHz |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 830 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.66 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.512" Dia (13.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 678D477M040EK4D | Vishay Sprague | CAP ALUM 470UF 20% 40V RADIAL | 85% | View |
| ED1E471MPS0816 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 75% | View |
| MAL214258471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V RADIAL | 69% | View |
| 100PX470MEFCGC16X25 | Rubycon | CAP ALUM 470UF 20% 100V RADIAL | 67% | View |
| MAL216056471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 25V RADIAL | 59% | View |
| 672D477F025DS5D | Vishay Sprague | CAP ALUM 470UF 25V RADIAL | 54% | View |
Submit your RFQ for EST477M050AL3AA and get a quote within 24 hours.
