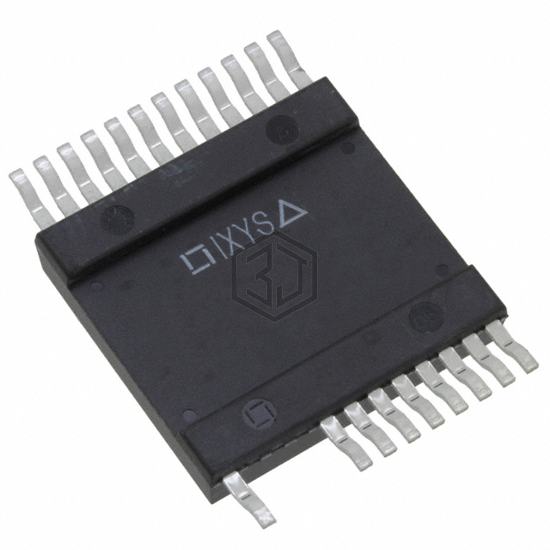

IGBT 600V 175A 520W SMPD
MMIX1X200N60B3H1 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 600V 175A 520W SMPD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 24-PowerSMD, 21 Leads, current - collector (ic) (max) 175 A.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 175 A |
| Current - Collector Pulsed (Icm) | 1000 A |
| Vce(on) (Max) @ Vge, Ic | 1.7V @ 15V, 100A |
| Power - Max | 520 W |
| Switching Energy | 2.85mJ (on), 2.9mJ (off) |
| Input Type | Standard |
| Gate Charge | 315 nC |
| Td (on/off) @ 25°C | 48ns/160ns |
| Test Condition | 360V, 100A, 1Ohm, 15V |
| Reverse Recovery Time (trr) | 100 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 24-PowerSMD, 21 Leads |
| Supplier Device Package | 24-SMPD |
Submit your RFQ for MMIX1X200N60B3H1 and get a quote within 24 hours.
