IGBT 1700V 10A 140W TO268

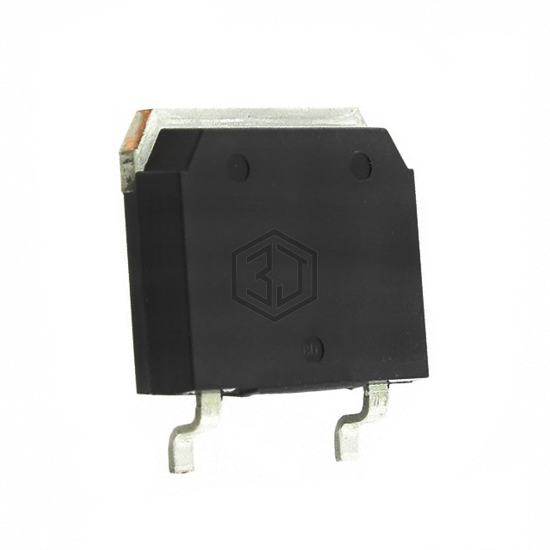

IXGT10N170A is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1700V 10A 140W TO268. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA, current - collector (ic) (max) 10 A.
In Stock: 4,791
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
| Current - Collector (Ic) (Max) | 10 A |
| Current - Collector Pulsed (Icm) | 20 A |
| Vce(on) (Max) @ Vge, Ic | 6V @ 15V, 5A |
| Power - Max | 140 W |
| Switching Energy | 380µJ (off) |
| Input Type | Standard |
| Gate Charge | 29 nC |
| Td (on/off) @ 25°C | 46ns/190ns |
| Test Condition | 850V, 10A, 22Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
| Supplier Device Package | TO-268AA |
