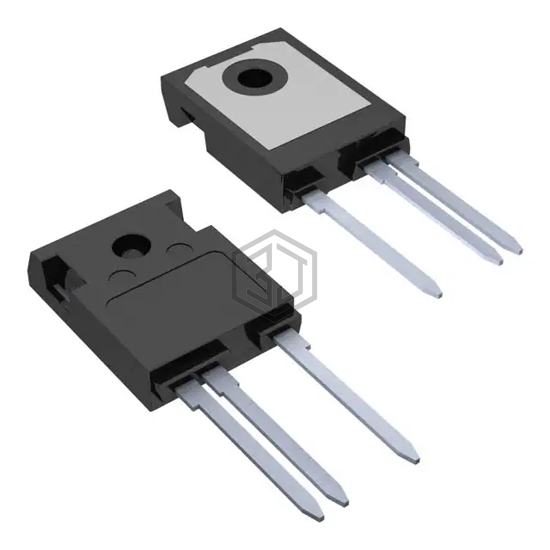

IGBT 3600V 70A TO-247HV
IXBH20N360HV is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 3600V 70A TO-247HV. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3 Variant, current - collector (ic) (max) 70 A.
In Stock: 6,268
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 3600 V |
| Current - Collector (Ic) (Max) | 70 A |
| Current - Collector Pulsed (Icm) | 220 A |
| Vce(on) (Max) @ Vge, Ic | 3.4V @ 15V, 20A |
| Power - Max | 430 W |
| Switching Energy | 15.5mJ (on), 4.3mJ (off) |
| Input Type | Standard |
| Gate Charge | 110 nC |
| Td (on/off) @ 25°C | 18ns/238ns |
| Test Condition | 1500V, 20A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 1.7 µs |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 Variant |
| Supplier Device Package | TO-247HV |
Submit your RFQ for IXBH20N360HV and get a quote within 24 hours.
