IGBT 2.5KV 70A TO247HV

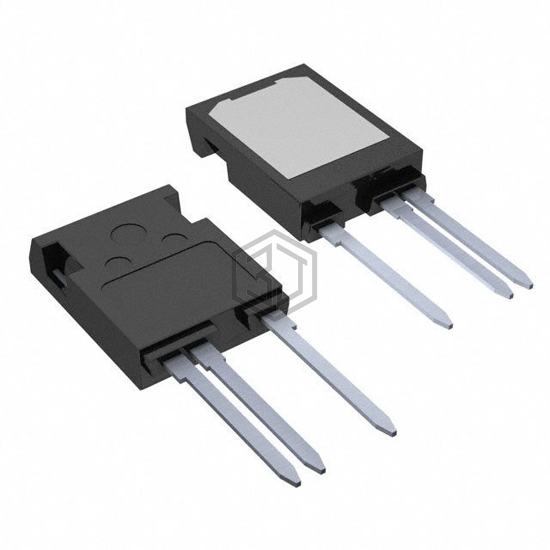

IXYX40N250CHV is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 2.5KV 70A TO247HV. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3 Variant, current - collector (ic) (max) 70 A.
In Stock: 9,491
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 2500 V |
| Current - Collector (Ic) (Max) | 70 A |
| Current - Collector Pulsed (Icm) | 380 A |
| Vce(on) (Max) @ Vge, Ic | 4V @ 15V, 40A |
| Power - Max | 1500 W |
| Switching Energy | 11.7mJ (on), 6.9mJ (off) |
| Input Type | Standard |
| Gate Charge | 270 nC |
| Td (on/off) @ 25°C | 21ns/200ns |
| Test Condition | 1250V, 40A, 1Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 Variant |
| Supplier Device Package | TO-247PLUS-HV |
Submit your RFQ for IXYX40N250CHV and get a quote within 24 hours.
