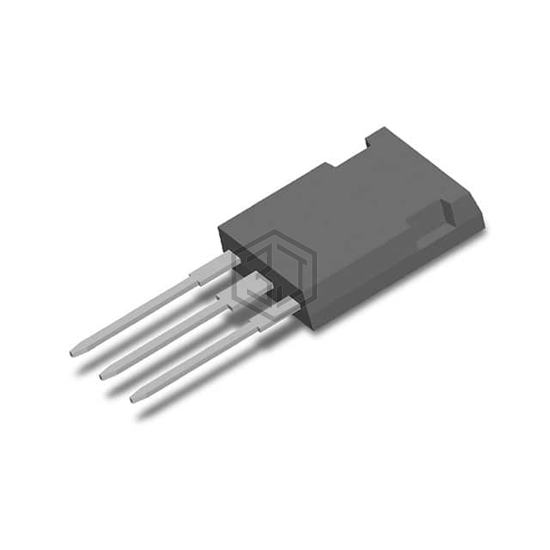

IGBT 140A 1200V PLUS247
IXYX140N120A4 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 140A 1200V PLUS247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3 Variant, current - collector (ic) (max) 480 A.
In Stock: 5,564
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | PT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 480 A |
| Current - Collector Pulsed (Icm) | 1200 A |
| Vce(on) (Max) @ Vge, Ic | 1.7V @ 15V, 140A |
| Power - Max | 1500 W |
| Switching Energy | 4.9mJ (on), 12mJ (off) |
| Input Type | Standard |
| Gate Charge | 420 nC |
| Td (on/off) @ 25°C | 52ns/590ns |
| Test Condition | 600V, 70A, 1.5Ohm, 15V |
| Reverse Recovery Time (trr) | 47 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 Variant |
| Supplier Device Package | PLUS247™-3 |
Submit your RFQ for IXYX140N120A4 and get a quote within 24 hours.
