IGBT 1200V 110A GEN4 XPT PLUS247

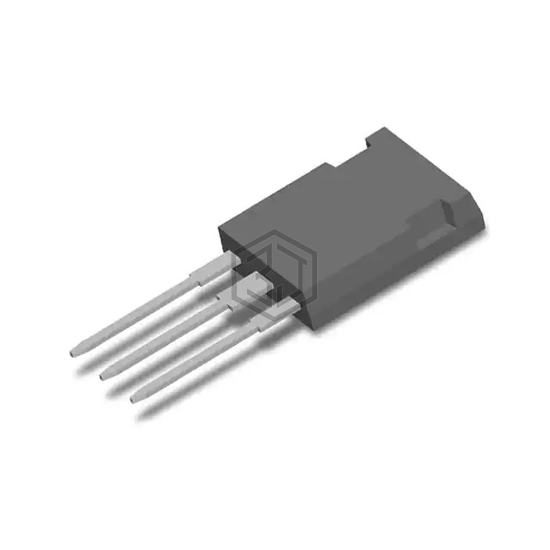

IXYX110N120B4 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 110A GEN4 XPT PLUS247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3 Variant, current - collector (ic) (max) 340 A.
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 340 A |
| Current - Collector Pulsed (Icm) | 800 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 110A |
| Power - Max | 1360 W |
| Switching Energy | 3.6mJ (on), 3.85mJ (off) |
| Input Type | Standard |
| Gate Charge | 340 nC |
| Td (on/off) @ 25°C | 45ns/390ns |
| Test Condition | 600V, 50A, 2Ohm, 15V |
| Reverse Recovery Time (trr) | 50 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 Variant |
| Supplier Device Package | PLUS247™-3 |
Submit your RFQ for IXYX110N120B4 and get a quote within 24 hours.
