IGBT

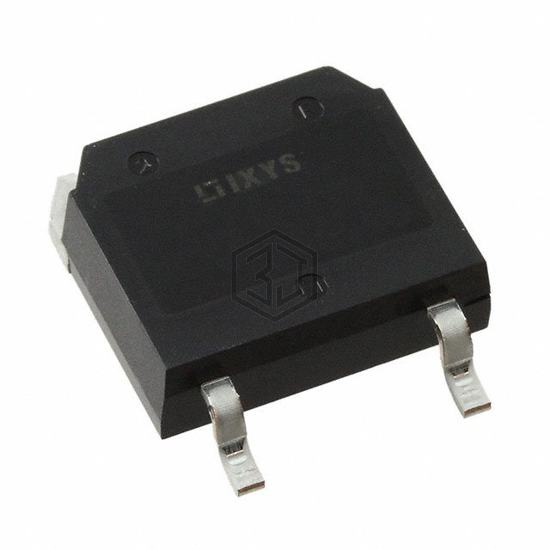

IXYT20N120C3D1HV is a Transistors - IGBTs - Single manufactured by IXYS. IGBT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA, current - collector (ic) (max) 36 A.
In Stock: 5,632
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 36 A |
| Current - Collector Pulsed (Icm) | 88 A |
| Vce(on) (Max) @ Vge, Ic | 3.4V @ 15V, 20A |
| Power - Max | 230 W |
| Switching Energy | 1.3mJ (on), 1mJ (off) |
| Input Type | Standard |
| Gate Charge | 53 nC |
| Td (on/off) @ 25°C | 20ns/90ns |
| Test Condition | 600V, 20A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 29 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
| Supplier Device Package | TO-268HV (IXYT) |
Submit your RFQ for IXYT20N120C3D1HV and get a quote within 24 hours.
