IGBT 1700V 120A SOT227B

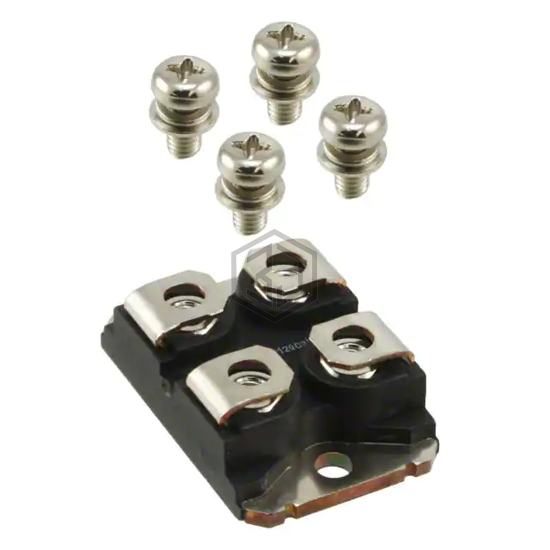

IXYN50N170CV1 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1700V 120A SOT227B. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 120 A.
In Stock: 8,507
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
| Current - Collector (Ic) (Max) | 120 A |
| Current - Collector Pulsed (Icm) | 485 A |
| Vce(on) (Max) @ Vge, Ic | 3.7V @ 15V, 50A |
| Power - Max | 880 W |
| Switching Energy | 8.7mJ (on), 5.6mJ (off) |
| Input Type | Standard |
| Gate Charge | 260 nC |
| Td (on/off) @ 25°C | 22ns/236ns |
| Test Condition | 850V, 50A, 1Ohm, 15V |
| Reverse Recovery Time (trr) | 255 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227B |
Submit your RFQ for IXYN50N170CV1 and get a quote within 24 hours.
