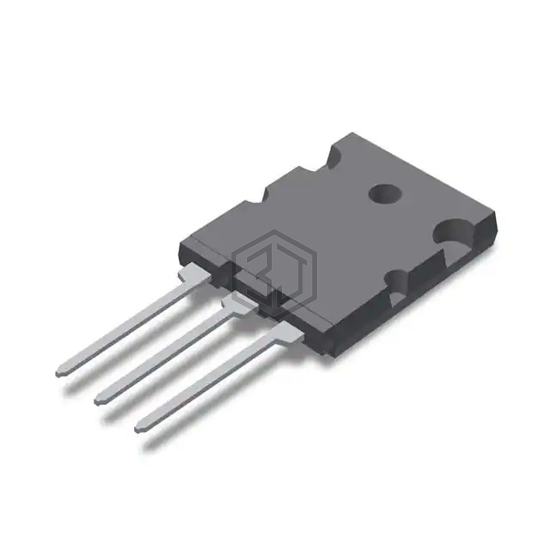

IGBT 1200V 110A GEN4 XPT TO264
IXYK110N120C4 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 110A GEN4 XPT TO264. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-264-3, TO-264AA, current - collector (ic) (max) 310 A.
In Stock: 4,474
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 310 A |
| Current - Collector Pulsed (Icm) | 740 A |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 110A |
| Power - Max | 1360 W |
| Switching Energy | 3.6mJ (on), 1.9mJ (off) |
| Input Type | Standard |
| Gate Charge | 330 nC |
| Td (on/off) @ 25°C | 40ns/320ns |
| Test Condition | 600V, 50A, 2Ohm, 15V |
| Reverse Recovery Time (trr) | 48 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-264-3, TO-264AA |
| Supplier Device Package | PLUS264™ |
Submit your RFQ for IXYK110N120C4 and get a quote within 24 hours.
